Camargue Gas Processing Skid

A midstream conditioning and export skid: emergency shutdown valve, two three-phase production separators, pressure control, two export compressors, interstage and export cooling, condensate export and a flare/relief system.

The Camargue gas processing skid overview in Djinious: wellhead ESD valve, two separators, pressure control valve, two compressors, coolers, condensate tank and export pump, with a relief header routed up to the flare stack.
Wellhead to export, with the relief header routed clear of the equipment frames to the flare — the way it sits on the real drawing.Rhodanien Midstream · Fos-sur-Mer, France
12
assets modelled
82
live tags at 1 Hz
5
procedure steps
2
assertions checked
EQUIPMENT

What the platform models here

Each family has a behavioural model that the live simulator and the proving twin share, so a dry-run behaves the way the plant does.

  • Three-phase separators
  • Centrifugal compressors
  • Heat exchangers
  • ESD & control valves
  • Condensate tank
  • Export pump
  • Flare stack
THE STANDING PROBLEM

A starved compressor walks toward its surge line

A fouled suction filter collapses CMP-01's inlet pressure and mass flow. Anti-surge margin goes negative while CMP-02 idles at part load. Surge damages the machine in seconds, and the operator's instinct — hold export by pushing the sick machine harder — is exactly wrong.

THE PROCEDURE

Compressor Anti-Surge Load Transfer

compressor-antisurge-transfer

Pull a starved export compressor away from its surge line and hold export throughput: unload CMP-01, transfer duty to CMP-02, open the pressure-control valve to shed back-pressure, and require operator confirmation before the change is applied.

  1. 01Unload CMP-01 → 45 %
  2. 02Load CMP-02 → 92 %
  3. 03Open PCV-01 → 78 %
  4. 04Shift-supervisor confirmation
  5. 05Notify control room

C4 · operational action

THE PROOF

CMP-01 Suction Restriction

A suction restriction starves CMP-01: inlet pressure and mass flow collapse and the machine enters surge while CMP-02 runs at part load.

Assertion results for the CMP-01 Suction Restriction scenario, run without the procedure and with it.
AssertionBaselineWith procedure
Anti-surge margin ≥ 12 % on both trains−32.3 %+16.6 %pass
CMP-02 export flow ≥ 80 kNm³/h71.2 kNm³/h88.7 kNm³/hpass

The machine is pulled off the surge line and export is held, both proven before a single command reaches the skid.

IN THE PRODUCT

What the control room sees

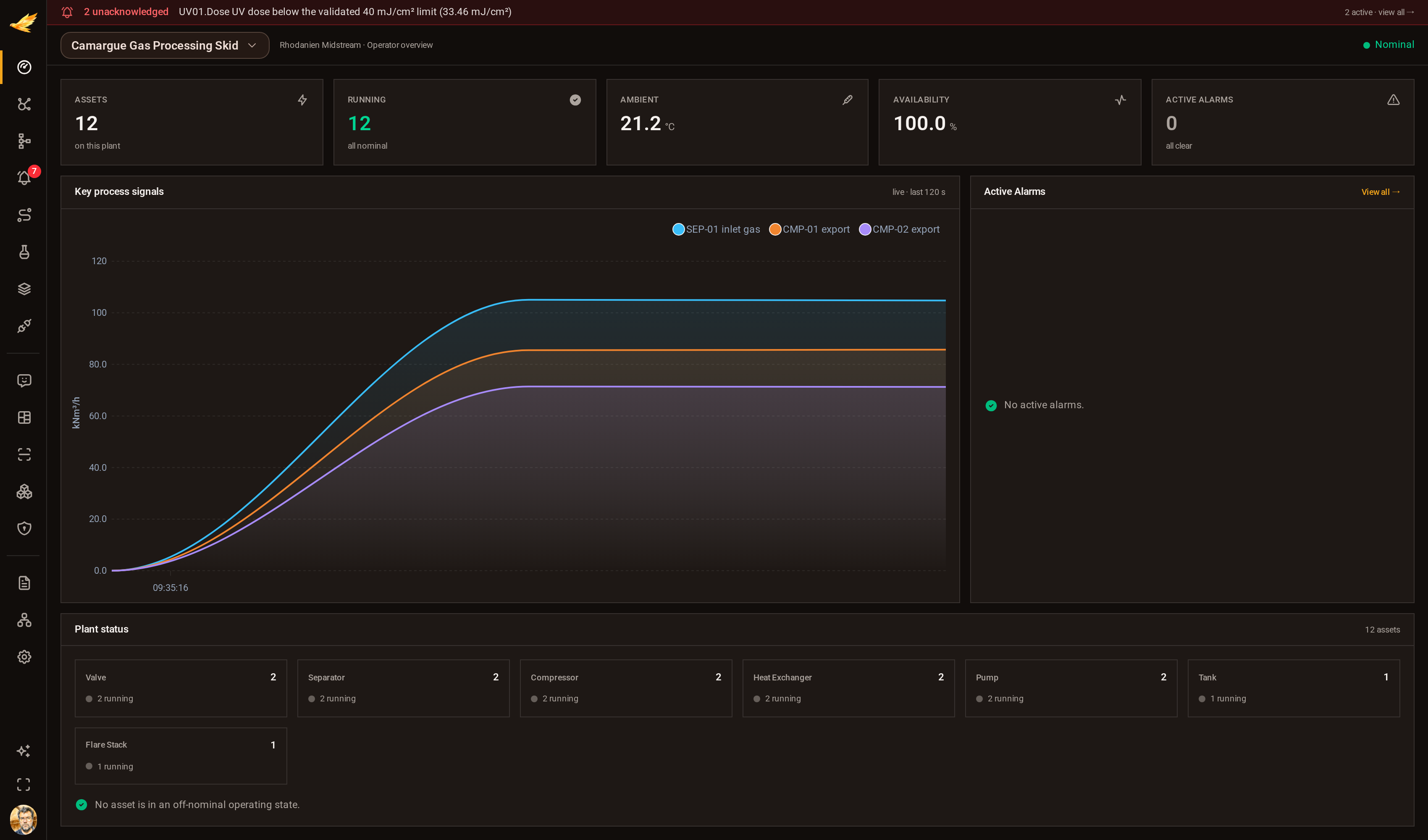

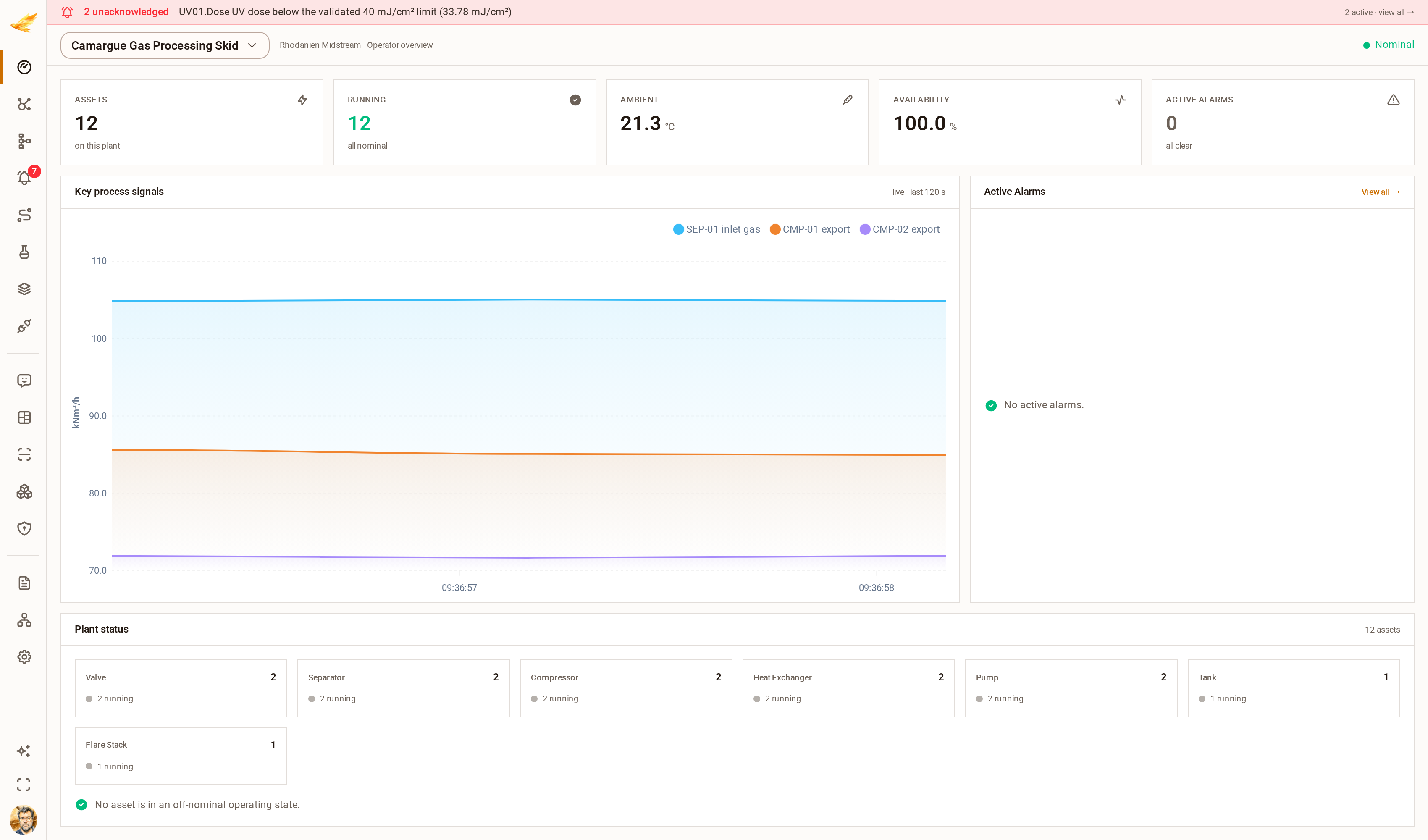

The Djinious operator dashboard scoped to the gas skid, showing asset roll-up, availability and a live trend of inlet gas and both compressor export flows.
